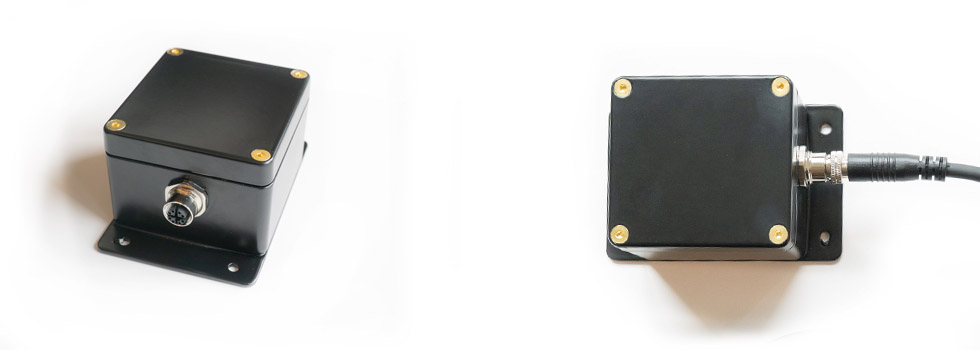

POE IP68 Rated IMU

Waterproof, dust-proof design for use in harsh environments.

Single CAT5E cable for power and data.

Live-stream and record using our free app.

Highest quality MEMS sensors
3-axis accelerometer, gyroscope, magnetometer

Selectable output data rate:
100Hz-1000Hz
1000 Hz internal update rate

Removable, IP68 sealed RJ45 cable.
POE IEEE802.3af class

Drift free, 3D rotation
0.5° static accuracy
2° dynamic accuracy
Full 360° range for each axis

111 x 70 x 54mm

Aluminum, with mounting flanges

Waterproof, dustproof
1.5m depth for 30 minutes

3M VHB tape
Hook-loop
ABS flange with mounting holes

1ms (at 1000Hz rate)

MotionNode is a precision inertial measurement unit.

Each sensor module takes high speed measurements and uses a state-of-the-art sensor fusion algorithm to output the device's rotation.

Measurements are synced with an internal temperature controlled oscillator (TCXO) and streamed back to your device.

We design and manufacture our sensors in the USA. We use only the highest quality miniature inertial sensors in our products.

Download a pdf specification sheet for MotionNode PoE IP68.

Field tested by the best and brightest in companies, research labs, and academic institutions.
